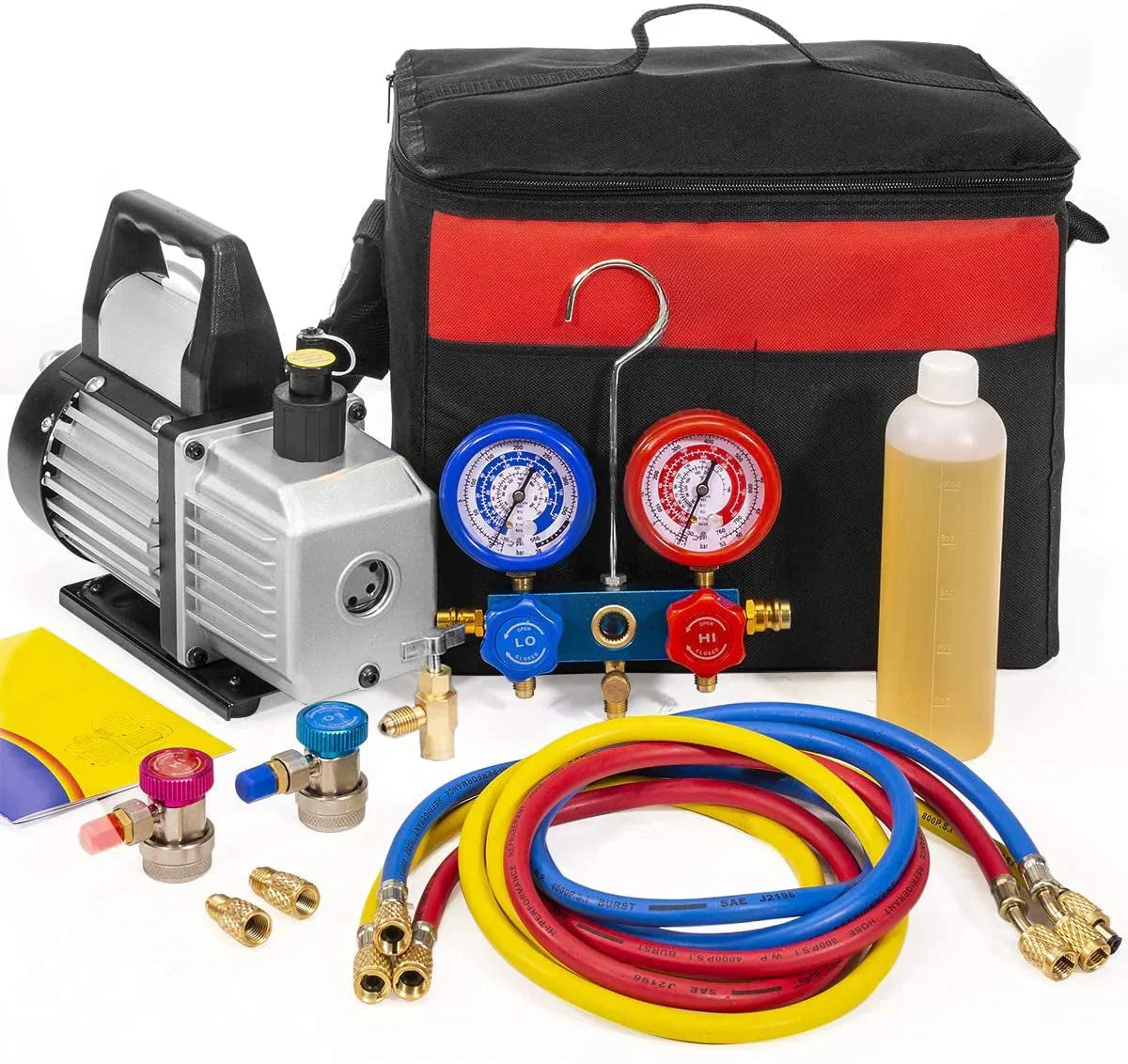

3CFM 1/4 HP Vacuum Pump HVAC Refrigeration AC Manifold Gauge

A convenient kit use to diagnose and service a vehicle's A/C system. This A/C Manifold Gauge Set can be used to test, evacuate and fill automotive or household air conditioning systems. With a carrying tote convenient storage and easy transportation.

Manifold Gauge Features:

• Heavy duty hook for hanging the manifold gauge in place
• No-flutter gauge design
• Solid Brass connections
• 36" Color coded charging hose
• Designed to meet 1/4" Standard SAE requirement for refrigerant permutation
• Ideal for R12, R22, R134a, R410a
• Quick disconnect couplers for high/low fittings included

Technical Specifications:

• Operating Pressure: 600 PSI
• Burst Pressure: 3000 PSI
• Manifold Blue Gauge (low): 0-150 PSI
• Gauge Reading: R12, R22, R134a, R410a
• Hose Length: 6 Feet

Vacuum Pump Features:

• Easy To See Oil Level Window - Oil viewing windows allows you to monitor oil quality and levels
• Easy To Maintain - Oil drain plug located at bottom of oil reservoir
• Easy To Operate - On/off switch
• Turn On & Go - Easy start & maintenance free
• Efficient Cooling - Built-in high volume cooling fan for extended use
• Portability - Non slip contoured carrying handle
• Safety - Exhaust port with cap

Technical Specifications:

• Free Air Displacement: 3 CFM
• Microns Rating: 75 microns (10pa)
• Power: 1/4HP
• Voltage 110V/60hz
• RPM: 1400
• Ultimate Vacuum: 5pa
• Oil Capacity: 220mL
• Inlet Port: 1/4" Flare

Package Content:

• Manifold Gauge Kit
• Vacuum Pump
• Carrying Tote
